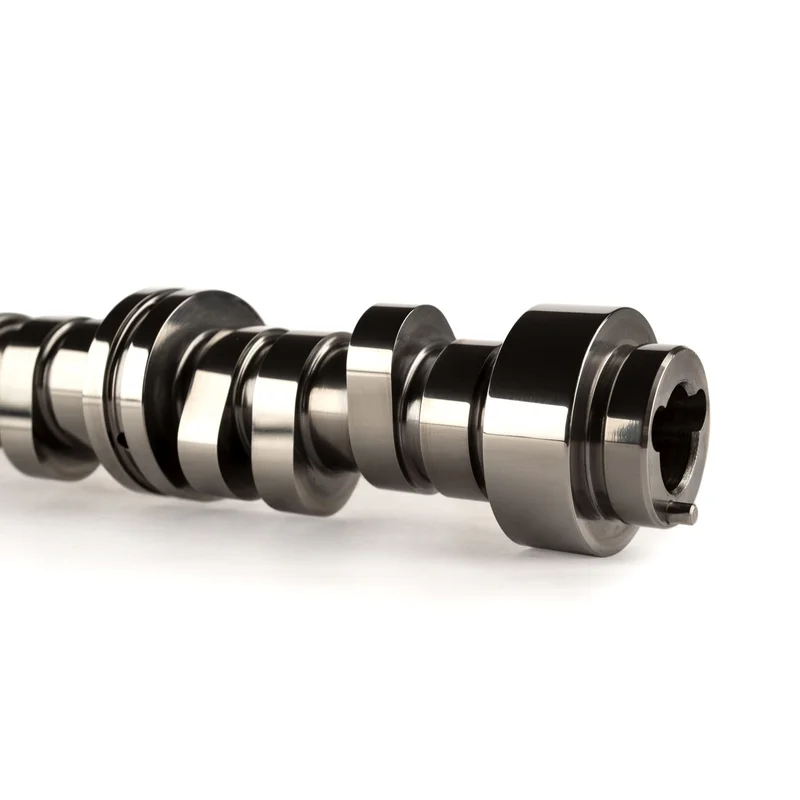

COMP Cams FSL 208/220 D 206/214 N Hydraulic Roller Cam for GM LS GEN IV COMP-689-199-13

Description

r

Attributes:

r

r
• GTIN: 00036584373131

r

• Brand Name: COMP Cams

r

• Exhaust Duration at .050 inch Lift Deactivation Cylinders: 220

r

• Advertised Intake Duration Non-Deactivation Cylinders: 266

r

• Advertised Intake Duration Deactivation Cylinders: 274

r

• Exhaust Valve Lift Deactivation Cylinders: 0.541

r

• Engine Family: GM LS GEN IV Single Bolt w/ VVT (12606358) and w/ AFM 8 Cylinder (2008-2015)

r

• C.A.R.B. E.O.: D-279-11

r

• Recommended Phaser Limiter: 5460

r

• Recommended Beehive Valve Spring Kit(s): 26918CS-KIT, 26918TS-KIT, 26918TI-KIT

r

• Recommended Dual Valve Spring Kit(s): 26925TS-KIT, 26925TI-KIT

r

• Recommended Pushrods: 7955-16, 8406-16

r

• Recommended Rectangule Port Rocker Arms: 1478-16, 19028-16

r

• Recommended Cathedral Port Rocker Arms: 1477-16, 19024-16

r

• Basic Operating RPM Range: 1,700-6,400

r

• Amazon ASIN: B07GTVJGYD

r

• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.

r

• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

r

• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.

r

• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

r

• C.A.R.B. Exempt for On-Road Vehicles?: Yes

r

• C.A.R.B. Exemption Reason: C.A.R.B. EO Issued

r

• C.A.R.B. E.O. Number: D-279-12

r

• Camshaft Series: FSL – 50 State Legal

r

• Grind Number: L99LX266

r

• Lobe Separation: 118

r

• Lifters Included: No

r

• Valve Springs Required: No

r

• Assembly Lubricant Included: No

r

• Camshaft Gear Attachment: 1-Bolt

r

• Camshaft Material: Billet Steel

r

• Usage: Street/Performance

r

• Intake Valve Lift Non-Deactivation Cylinders: 0.541

r

• Intake Valve Lift Deactivation Cylinders: 0.541

r

• Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 206

r

• Intake Duration at .050 Inch Lift Deactivation Cylinders: 208

r

• Advertised Exhaust Duration Deactivation Cylinders: 282

r

• Exhaust Valve Lift Non-Deactivation Cylinders: 0.541

r

• Advertised Exhaust Duration Non-Deactivation Cylinders: 266

r

• Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 214

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : Released

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: EA

r

• Dimension: 24.5 x 2.75 x 3 inches

r

• Weight: 11.1 lb
