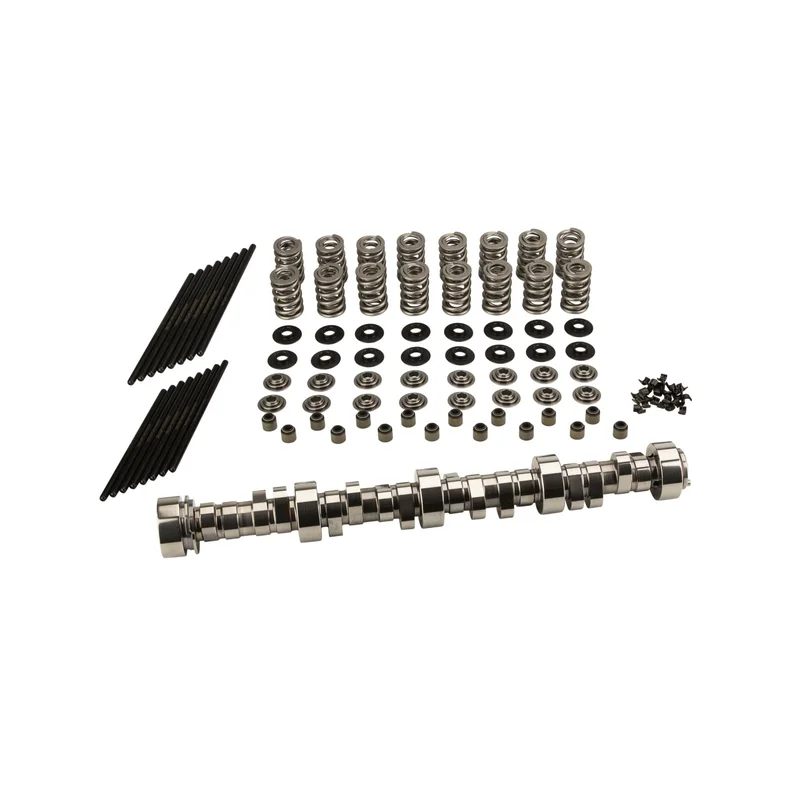

COMP Cams Stage 1 Thumpr Cam Kit for GEN III LS 4.8/5.3/6.0L Trucks COMP-CK54-700-11

Description

r

Attributes:

r

r
• GTIN: 00036584387589

r

• Brand Name: COMP Cams

r

• Kit Type: CK-Kit

r

• Camshaft Series: Thumpr NSR (No Springs Required)

r

• Usage: Street / Performance

r

• Cam Type: Hydraulic Roller

r

• Basic Operating RPM Range: 1,500-6,300

r

• Intake Duration at .050 Inch Lift: 218

r

• Exhaust Duration at .050 inch Lift: 229

r

• Advertised Intake Duration: 272

r

• Advertised Exhaust Duration: 291

r

• Lobe Separation: 111

r

• Intake Valve Lift: 0.614

r

• Exhaust Valve Lift: 0.606

r

• Lifters Included: No

r

• Valve Springs Included: Yes

r

• Assembly Lubricant Included: No

r

• Camshaft Gear Attachment: 3-Bolt

r

• Camshaft Material: Billet Steel

r

• Lifter Type: Hydraulic Roller

r

• Retainers Included: Yes

r

• Locks Included: Yes

r

• Pushrods Included: Yes

r

• Gaskets Included: No

r

• Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)

r

• Stage: 1

r

• Timing Set Included: No

r

• Valve Seals Included: Yes

r

• Valve Spring Seats Included: Yes

r

• Grind Number: 272LTH11

r

• Estimated Horsepower Gain with Kit: 68

r

• Recommended Upgraded Stock Rocker Arms: 1477-16

r

• Recommended Max-Lift BSR Shaft Rocker System: 1981-16

r

• Recommended Cam Install Kit: 5621

r

• Amazon ASIN: B07MQBDD48

r

• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.

r

• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

r

• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.

r

• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

r

• C.A.R.B. Exempt for On-Road Vehicles?: No

r

• C.A.R.B. Exemption Reason: N/A

r

• C.A.R.B. E.O. Number: N/A

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : EPA Eligible

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: KT

r

• Dimension: 26 x 10.5 x 5.5 inches

r

• Weight: 18.75 lb
