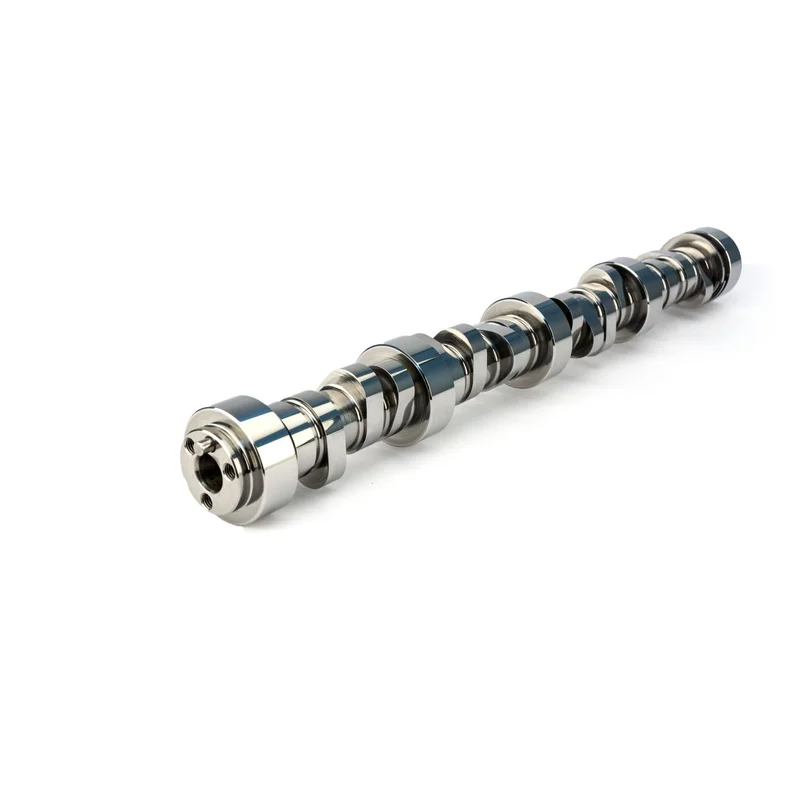

COMP Cams XFI XE-R 238/240 Hydraulic Roller Cam for GM LS GEN III/IV COMP-54-448-11

Description

r

Attributes:

r

r
• GTIN: 00036584068938

r

• Brand Name: COMP Cams

r

• Camshaft Series: XFI XE-R

r

• Cam Type: Hydraulic Roller

r

• Grind Number: XER287HR

r

• Basic Operating RPM Range: 2,800-7,200

r

• Intake Duration at .050 Inch Lift: 238

r

• Exhaust Duration at .050 inch Lift: 240

r

• Advertised Intake Duration: 287

r

• Advertised Exhaust Duration: 289

r

• Lobe Separation: 112

r

• Intake Valve Lift: 0.605

r

• Exhaust Valve Lift: 0.609

r

• Lifters Included: No

r

• Valve Springs Required: Yes

r

• Assembly Lubricant Included: No

r

• Camshaft Gear Attachment: 3-Bolt

r

• Camshaft Material: Billet Steel

r

• Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)

r

• Cam and Lifter Kit Upgrade: CL54-448-11

r

• K-Kit Upgrade: K54-448-11

r

• Lifter Type: Hydraulic Roller

r

• Amazon ASIN: B000V9CV7K

r

• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.

r

• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

r

• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.

r

• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

r

• C.A.R.B. Exempt for On-Road Vehicles?: No

r

• C.A.R.B. Exemption Reason: N/A

r

• C.A.R.B. E.O. Number: N/A

r

• MSE Process Video Link: https:///watch?v=hTyIQxrPCCI

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : EPA Eligible

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: EA

r

• Dimension: 23.38 x 2.91 x 2.59 inches

r

• Weight: 9.75 lb

r

rr

PDF:

r dddbebdc29809
