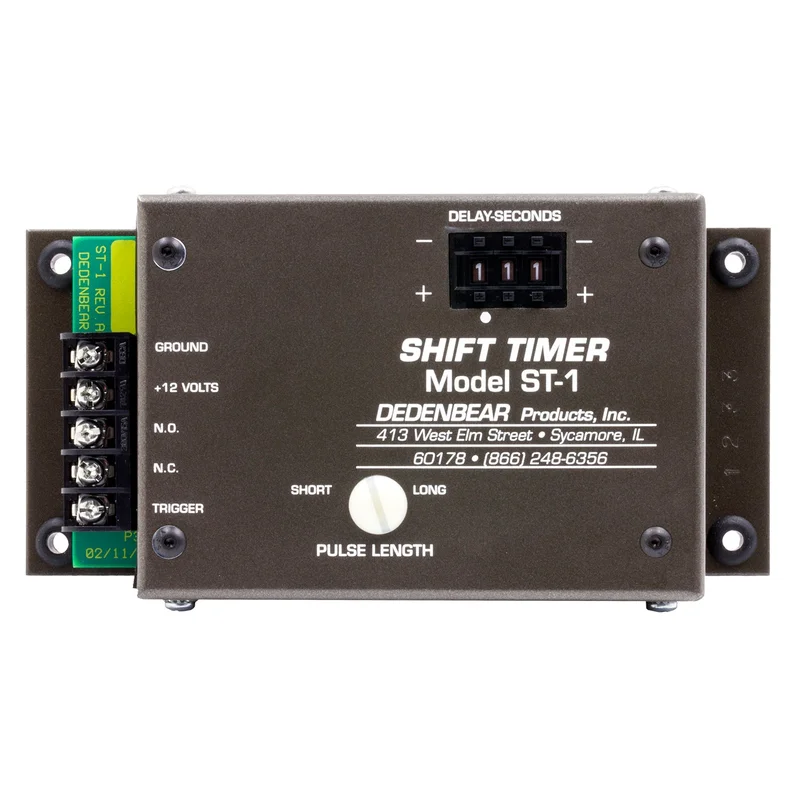

Dedenbear SHIFT TIMER / SINGLE STAGE TIMER N.O. OR N.C. OUTPUT ST1

Description

The Dedenbear St1 Is A Single Stage Timer That Can Be Used To Activate A Device Such As A Shifter, Throttle Stop, Nitrous Solenoid, Or Timing Retard Based On Time Rather Than Rpm. The Shift Timer Works Particularly Well In Cars That Have Loose Converters. The Engine In A Car With A Loose Converter Tends To Run At A Fixed Rpm Until The Converter Locks Up And Stops Slipping. Since The Engine Runs In A Narrow Rpm Band Near The Intended Shift Point For A Large Portion Of The Run, The Actual Shift Point Can Vary Widely. The St1 Will Allow The Car To Shift At A Precise Point During A Run And The Engine Rpm Doesnt Matter.r

• Adjustable timer from 0-9.99 seconds programmed with push button thumbwheels

r

• Selectable output of 0.5 second pule for applications like shifter activation, and long 17 second pulse for applications such as nitrous oxide, throttle stops, etc.

r

• Output Terminals are Normally Closed and Normally Open to either apply or remove 12V power

r

• Release of the transbrake or line lock solenoid starts the timer at the beginning of the run.

r

• Small size for maximum mounting versatility. Measures 6.50 in. W x 3.38 in. H x 1.25 in D.

r

• Compatible with 12 and 16 volt electrical systems

r

rr

Attributes:

r

r
• GTIN: 00046074165023

r

• Brand Name: Dedenbear

r

• Add-On: SS2;SS4;SS5;SS6;L1;L2;CC3;2163;BEX-5000;2159;2172;2183

r

• Size – Metric – MM: 165mm x 86mm x 32mm

r

• Size – Standard – IN: 6.50in x 3.38in x 1.25in

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : Released

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: EA

r

• Dimension: 5.5 x 11.5 x 3.5 inches

r

• Weight: 1.5 lb

r

rr

PDF:

r 2650-1299
