Holley LS Single Plane Mid-Rise Intake 300-132

Description

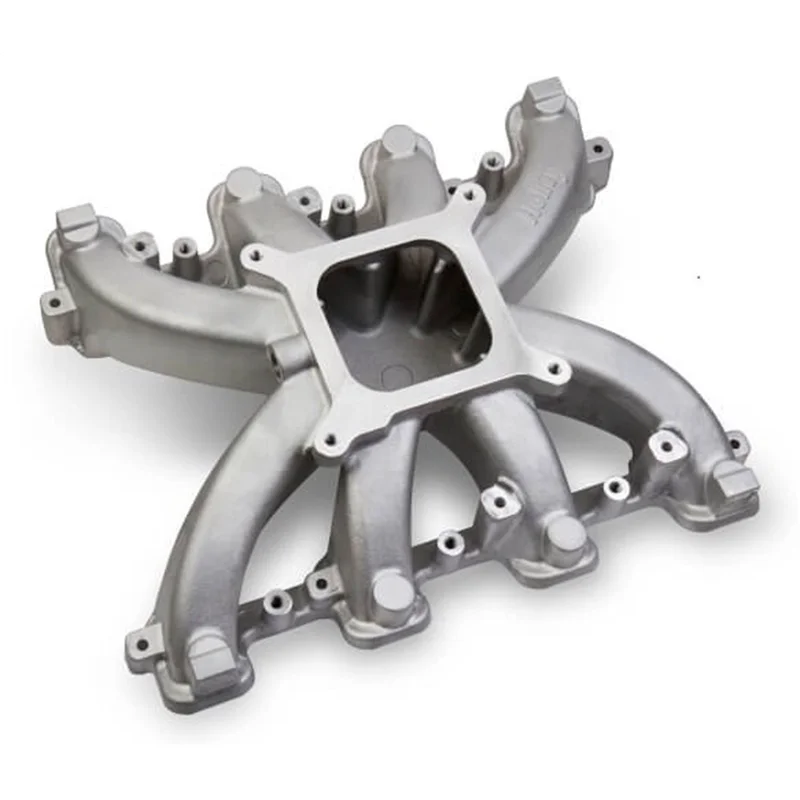

The Modular Mid–Rise intake utilizes the popular Holley LS1/LS2/LS6 cathedral port Mid–Rise 2 x 4 intake Manifold along with a purpose built plenum base Adapter and a Holley 92MM EFI plenum top which converts it into a Mid–Rise EFI intake manifold. With a max overall height of only 10.44in., the Mid–Rise Manifold is an excellent choice for street and performance street/strip applications with a powerband from 1,500–6,500 RPM and limited hood clearance. It’s perfect for a blow–thru or turbocharged application. Being part of the Holley modular intake line means that this intake is not only available as a complete kit with intake, adapter, 92MM top and fuel rails, but all parts can also be purchased separately for a custom intake build. The plenum Adapter (PN 300–231) will accept all of the popular Holley Hi–Ram plenum tops as a foundation for custom induction systems.r

• 2500-7000 rpm Power Band

r

• Optimized Runner Layout Provide A Broad Torque Curve

r

• Minimum Carb Flange Height Results Minimum Hood Modifications

r

• Manifold For Centrifugal Blower/Turbocharged/NOS Power Adder Apps

r

• Efficient Casting Design/Lightweight Wall Thickness

r

• Weight 11.5 lbs..

r

• Port Size 2.50 in. Height X 1.15 in. Wide

r

• Incl. Viton O-Ring Intake To Cylinder Head Gaskets

r

rr

Attributes:

r

r
• GTIN: 00090127687734

r

• Brand Name: Holley

r

• Barrel: Four

r

• Construction: Cast

r

• Cylinder Head Type: Cathedral Port

r

• Emission: Without EGR

r

• Engine Make/Size: GM LS1/LS2/LS6

r

• Finish: Satin

r

• Flange Type: 4150 Square Bore

r

• Front Height: 4.950 in.

r

• Fuel System Type: Carb

r

• Manifold Type: Single Plane

r

• Number of Carbs: One

r

• Position: Upper

r

• Rear Height: 4.950 in.

r

• RPM Range: 2500-7000

r

• Usage: Street/Hi-Performance

r

• WARNING CA Proposition 65: No

r

rr

Extended Information:

r

r
• Country of Origin: China

r

• Emissions : Electronically Announced

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each:

r

• Package UOM:

r

• Dimension: 23.2000 x 14.7000 x 7.0000 inches

r

• Weight: 12.1000 lb
