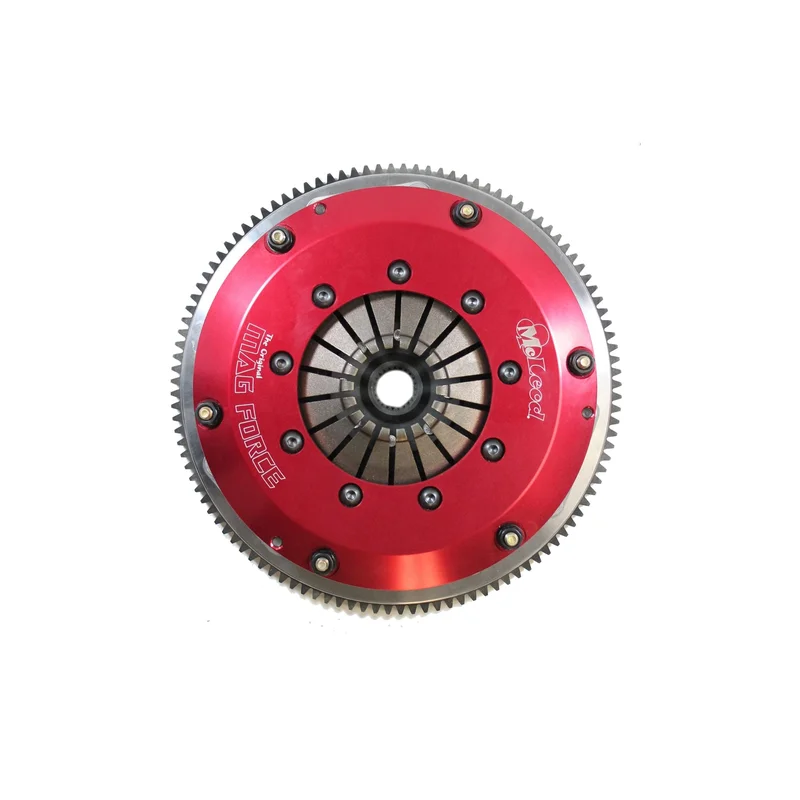

McLeod Mag Force:Double Disc: Pin Drive:Ford:1963-95 SBF:0Bal:1-1/8×26:157T 651322-00-07

Description

Mag Force – These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.r

• The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials.

r

rr

Attributes:

r

r
• GTIN: 00887753314895

r

• Brand Name: McLeod

r

• Make: Ford

r

• Engine: 1964-1995 SBF

r

• Ring Gear: 157 tooth

r

• Spline: 1 1/8In. x 26

r

• Racing Application: Road Race & Slalom Racing

r

• Racing Application 2: Drifting

r

• Pilot Bushing Material: N/A

r

• Pilot Bushing Included: No

r

• Number of Discs: Double

r

• Hardware Included: Yes

r

• Throwout Bearing Included: No

r

• Alignment Tool Included: Yes

r

• Flywheel Material: Aluminum

r

• Flywheel Included: Yes

r

• Engine Balance: Internal Balance

r

• Disc Style: Puck Style

r

• Disc Material: Sintered Iron

r

• Disc Diameter: 8In.

r

• Throwout Bearing Style: Standard

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : Released

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: EA

r

• Dimension: 16 x 17 x 5.5 inches

r

• Weight: 22 lb

r

rr

PDF:

r I0008_Mag_Force_Clutch_Instructions
