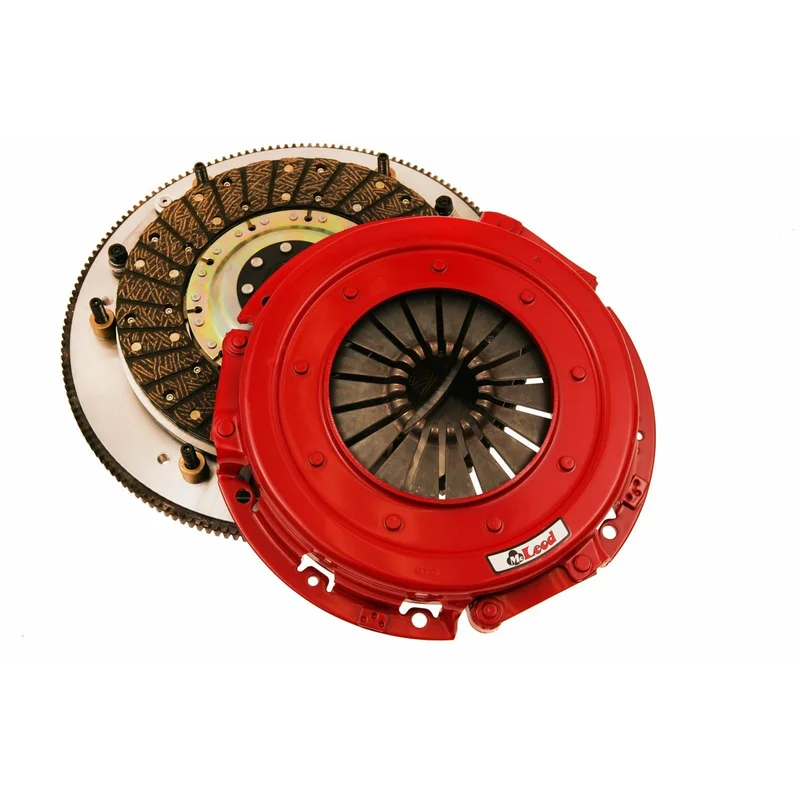

Description
In 1974 With The Rising Popularity Of Power Adders Such As Nitrous,Superchargers And Turbochargers, Mcleod Recognized The Need For A Clutch Assembly That Was Street Friendly, Yet Still Capable Of Handling Up To 1,200 Horsepower, Thus The Street Twin Was Born! This Series Of Mcleod Clutch Kit Is Intended For High Horsepower Street Enthusiast. Whether It’S Nos,Supercharger,Turbocharger Or A Big Inch Mountain Motor The “Original Street Twin” Can Handle It. Go With The Innovator Not The Imitator Mcleod Racing!r
- McLeod Racing is the leader in twin disc clutch applications. We offer them in several different configurations to meet your needs. Give us a call 714-630-2764 to see what we can do for you!
r
rr
Attributes:
r
- r
- GTIN: 00887753676269
- Brand Name: McLeod
- NOTE:: This unit is intended for aftermarket transmission. For more info call McLeod Tech at 714-630-2764
- Additional Counter Weight Kit Required: N/A
- Horsepower Rating: 1500
- Throwout Bearing Included: No
- Spline: 1-1/8 x 26
- Ring Gear: 164
- Pressure Plate Style: Diaphragm
- Pilot Bushing Material: N/A
- Pilot Bushing Included: No
- Number of Discs: Double
- Make: Ford
- Hub Style: Solid
- Hardware Included: Yes
- Alignment Tool Included: Yes
- Flywheel Material: Steel
- Flywheel Included: Yes
- Engine Balance: Neutral
- Engine: Modular Ford 4.6L/5.0L/5.4L 8 Bolt Crank
- Disc Style: Segmented
- Disc Material: Ceramic
- Disc Diameter: 10.5In.
- Clutch Usage: Street
- Clutch Patterns: Street Twin Pattern
- Throwout Bearing Style: Standard Mechanical
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
r
rr
Extended Information:
r
- r
- Country of Origin: United States
- Life Cycle Status: Available To Order
- Emissions : Released
r
r
r
rr
Packing Information:
r
- r
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 16 x 17 x 5.5 inches
- Weight: 50 lb
r
r
r
r
rr
PDF:
r I0001 Street Twin Instructions
