McLeod Soft Lok Alm Mopar 10″ X 1 X 23 Spl HCF 6 Bolt Crk 0Bal 130T 4956-00-02

Description

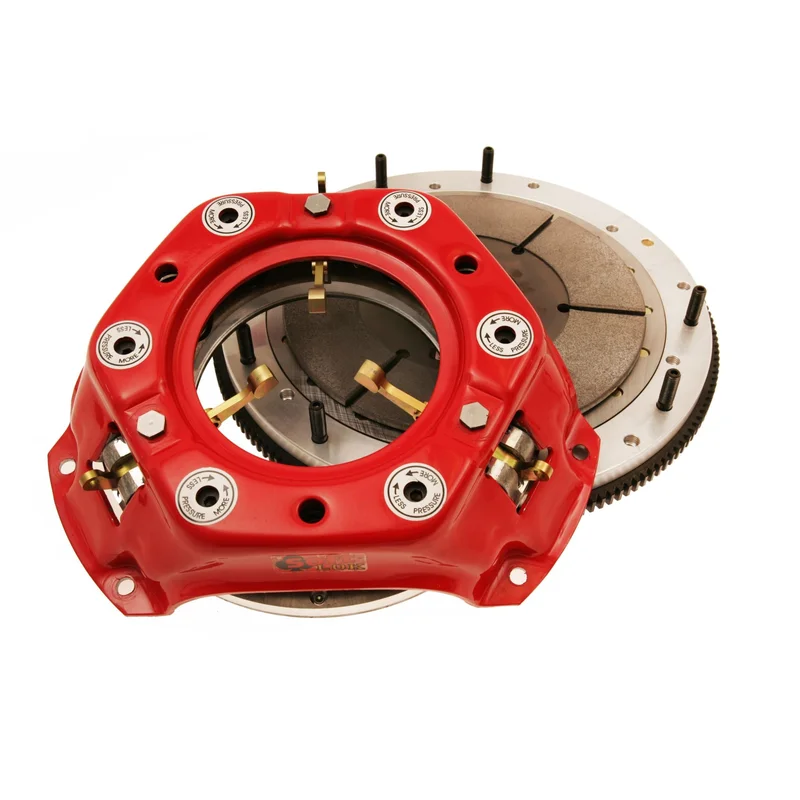

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.r

• McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate.

r

rr

Attributes:

r

r
• GTIN: 00887753673848

r

• Brand Name: McLeod

r

• Disc Diameter: 10In.

r

• Engine: 1964-1999 SBC/BBC

r

• Engine Balance: Internal Balance

r

• Flywheel Included: Yes

r

• Flywheel Material: Aluminum

r

• Hub Style: Solid

r

• Make: Chrysler

r

• Number of Discs: Single

r

• Racing Application: Drag Racing

r

• Ring Gear: 130 tooth

r

• Spline: 1In. x 23

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : Released

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: EA

r

• Dimension: 16 x 17 x 5.5 inches

r

• Weight: 75 lb

r

rr

PDF:

r I0029Soft_Lok_Clutch_Instruction
