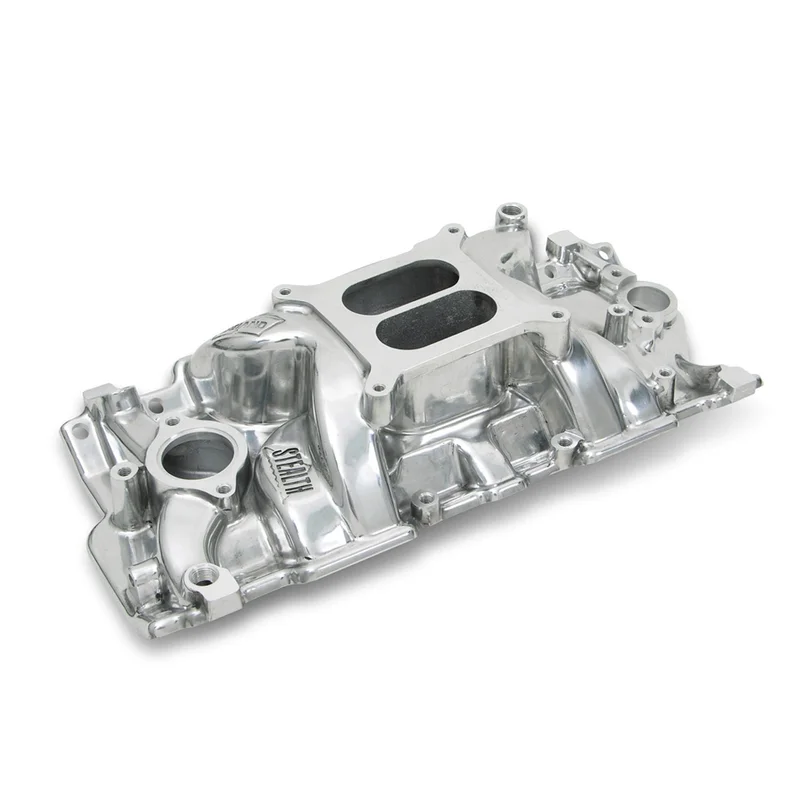

Speed Warrior™ Intake Manifold

Description

Weiand is no stranger to the performance aftermarket. Since the 1930s, Weiand has been delivering serious performance parts to street /strip enthusiasts, marine customers and hard core racers. Times have changed as bigger motors, higher RPMs, better ignition systems and ultra efficient cylinder head designs have generated a need for better manifold technology. Weiand has delivered!***Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket – Mr Gasket #’s 5821 or 101G.Plenum depth: From the carb flange to the bottom of the upper plenum is 2-3/16″. To the bottom of the lower plenum is 4-1/16″.r

• Precision CNC Machining

r

• High Rise/Dual Plane Design

r

• Square Bore Carburetor Flange

r

• Exhst Crossover For Improved Street Drivability (Std. SBC Heads)

r

• 1500-6700 RPM Power Band

r

• Height Front 4.19 in.; Rear 5.27 in.

r

• Port Size 1.92 in. Height x 1.16 in. Width

r

rr

Attributes:

r

r
• GTIN: 00090127631355

r

• Brand Name: Weiand

r

• Barrel: Four

r

• Cylinder Head Type: Standard

r

• Emission: Without EGR

r

• Engine Make/Size: Chevy Small Block V8

r

• Finish: Shiny

r

• Front Height: 4.190 in.

r

• Fuel System Type: Carbureted

r

• Manifold Type: High Rise

r

• Number of Carbs: One

r

• Position: Lower

r

• Rear Height: 5.270 in.

r

• RPM Range: 1500-6700

r

• Usage: Street/Strip

r

• WARNING CA Proposition 65: No

r

rr

Extended Information:

r

r
• Country of Origin: China

r

• Emissions : Electronically Announced

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each:

r

• Package UOM:

r

• Dimension: 25.0000 x 12.1000 x 7.0000 inches

r

• Weight: 14.5500 lb
