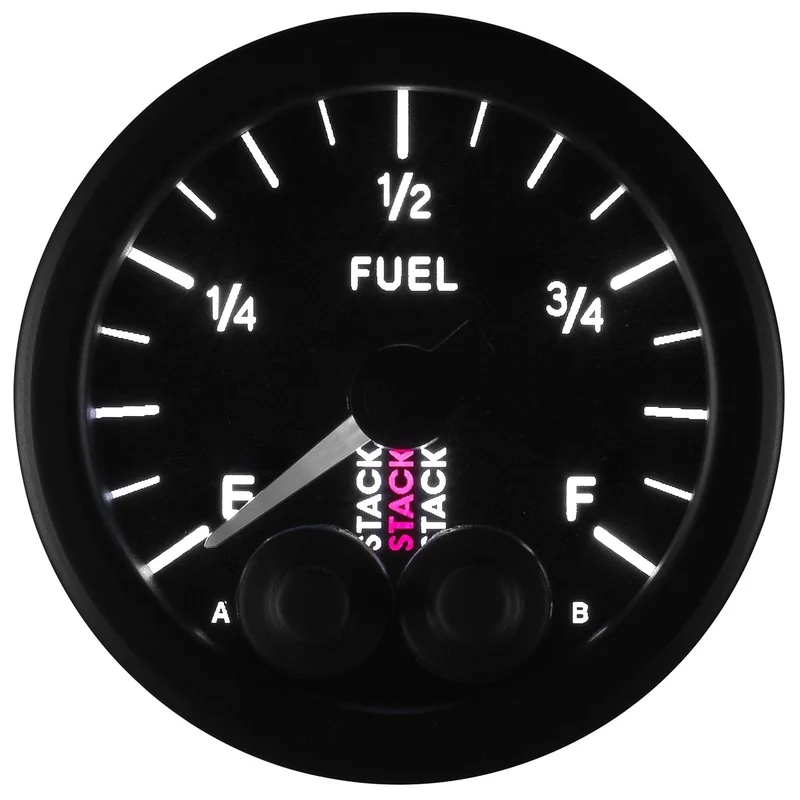

Stack 2-1/16 in. FUEL LEVEL PROGRAMMABLE 0-280 O STACK PRO-CONTROL BLK ST3515

Description

Stack Pro Control Stepper Motor range of analogue gauges are user configurable with Maximum/Minimum alarms which can be set with one of seven different colours to indicate status bringing total control and driver awareness of critical engine functions.r

• User-configurable minimum and maximum alarms can be set, with one of seven different colours assigned to each.

r

• As soon as an alarm level is exceeded, the full dialface changes colour.

r

• If the level exceeds the alarm by more than 10%, the dialface flashes rapidly to further alert the driver.

r

• With a choice of 7 user-selectable LED backlighting colours ( red, green, yellow, blue, purple, turquoise and white) the user can choose the optimum colour for maximum visibility and readability of the gauge, day and night.

r

• The Pro-Control feature activates low and high outputs whenever the user-defined alarm levels are exceeded. Pro-control outputs can be used to switch a relay to activate cooling fans, pumps, lamps, alarms, ignition kill etc.

r

• Press and hold the PEAK button to recall on the dial the highest temperature or lowest pressure or voltage since the memory was last reset.

r

• Precision stepper-motor needle movements and solid-state sensors ensure better than 2% accuracy.

r

• All Stack 52mm Professional gauges come complete with wiring harness and associated solid-state sensor (except for Fuel Level and Battery Voltage gauges).

r

• Fast, smooth stepper motor needle drive

r

• 270″ full sweep movement for excellent readability

r

• Remotely mounted solid-state sensors keep hazardous fluids in the engine compartment

r

rr

Attributes:

r

r
• GTIN: 00046074142833

r

• Brand Name: Stack

r

• Add-On: ST269114;ST3516

r

• Product Type: Gauge Fuel Level

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : Released

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: EA

r

• Dimension: 4.5 x 4.5 x 4.5 inches

r

• Weight: 0.75 lb

r

rr

PDF:

r 2650-1445
