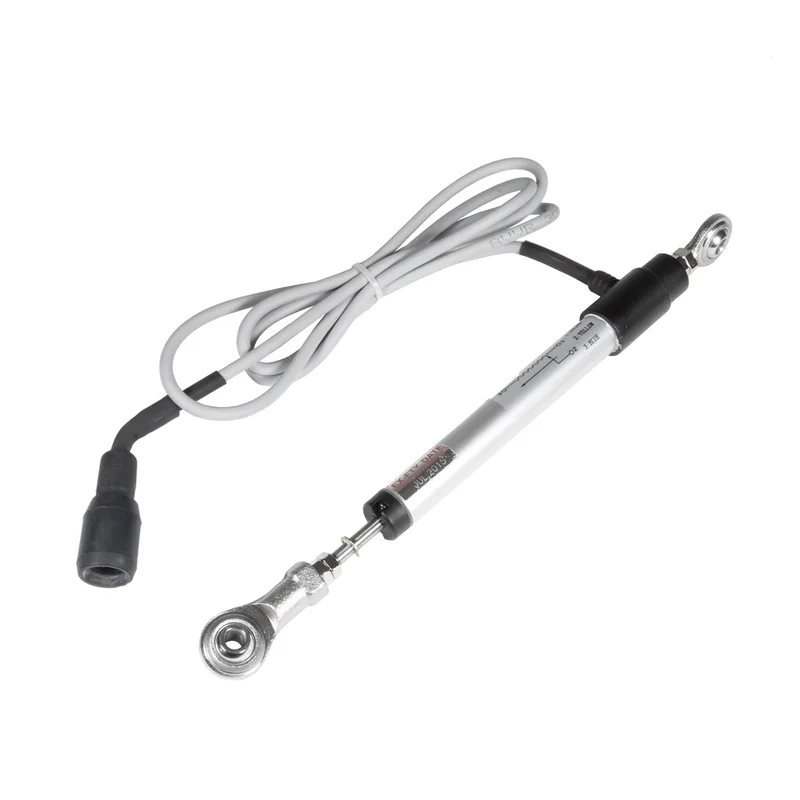

Stack LINEAR POTENTIOMETER PROFESSIONAL 50MM/2 in. (E.G. SUSPENSION) ST972

Description

Stack Professional Linear Potentiometers are engineered to excel in the most demanding conditions in motorsport offering excellent repeatability, reliability, linearity and extended environmental performance. Featuring IP67 sealing, equipped with self-aligning spherical bearings, and available in stroke lengths from 50-200 mm (2-8″), these position sensors are pre-terminated for use with Stack data systems monitoring parameters such as damper (shock) position, pedal inputs, steering angle, throttle position, aerodynamic surface deflection, and actuator travel.r

• Active Electrical Travel: 50 mm (2.0″)

r

• Maximum Operating Speed: 10m/s

r

• Retracted Mounting Distance: 198 mm (7.8″)

r

• Anodised Aluminium Housing, IP67 Sealed.

r

• Body Length: 157.5 mm (6.2″), Body Width: 15 mm (0.6″)

r

• Spherical Bearing Mounting Hole Size: 5 mm (0.197″)

r

• Pre-terminated cable with Mini Sure Seal Connector. Length: 585mm (23″)

r

• Linearity: +/- 0.2%

r

• Life: Greater than 25 million cycles

r

• Operating Temperature: -40 to +150 Degrees C (-40 to 300 Degrees F) and short term to 175 Degrees C (347 Degrees F)

r

rr

Attributes:

r

r
• GTIN: 00046074161018

r

• Brand Name: Stack

r

• Add-On: ST884;ST973;ST974;ST977;ST976;ST978

r

• Product Type: Sensor

r

rr

Extended Information:

r

r
• Country of Origin: United States

r

• Emissions : Released

r

• Life Cycle Status: Available To Order

r

rr

Packing Information:

r

r
• Quantity of Each: 1

r

• Package UOM: EA

r

• Dimension: 0.5 x 8 x 4 inches

r

• Weight: 0.5 lb

r

rr
